How to Choose Between Cr and CrAl Targets: Ultimate Guide for Material Selection

Choosing the right sputtering target is crucial for ensuring the quality and performance of thin films in numerous industries. Among the popular options, Cr (Chromium) and CrAl (Chromium-Aluminum) targets stand out due to their unique properties and diverse applications. However, deciding between the two can be confusing if you don’t understand their differences, benefits, and use-cases. This comprehensive guide will help you break down the essential factors so you can make an informed decision based on your specific needs.

Introduction to Cr and CrAl Targets

When it comes to sputtering targets used in thin-film deposition, not all materials are created equal. Cr and CrAl targets are some of the most widely used materials thanks to their excellent adhesion properties and stability. However, they each bring distinct advantages and characteristics that can significantly impact your project's success. Let’s first understand what these materials are.

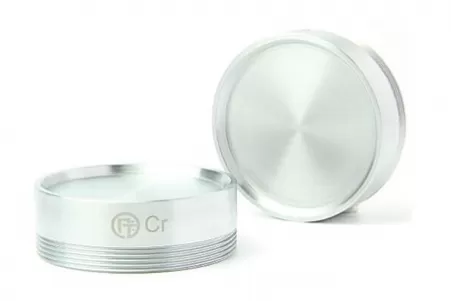

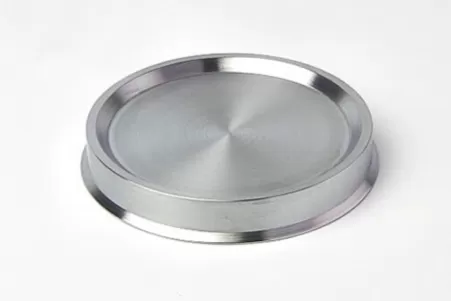

What are Cr Targets?

Cr targets, or Chromium targets, are composed primarily of pure chromium. Chromium is a transition metal known for its high corrosion resistance, impressive hardness, and shiny metallic luster. In sputtering applications, Cr targets are highly favored for their ability to create durable, hard, and corrosion-resistant thin films.

Key Characteristics of Cr Targets:

High Melting Point: Around 1,907°C, making it highly stable at high temperatures.

Excellent Hardness: Chromium films are known for being extremely hard and durable.

Corrosion Resistance: Outstanding resistance to oxidation and chemical corrosion.

Magnetic Properties: Chromium exhibits antiferromagnetic properties at room temperature.

Typical industries that use Cr sputtering targets include electronics, decorative coatings, aerospace, and automotive sectors, where high durability and resistance to wear and tear are paramount.

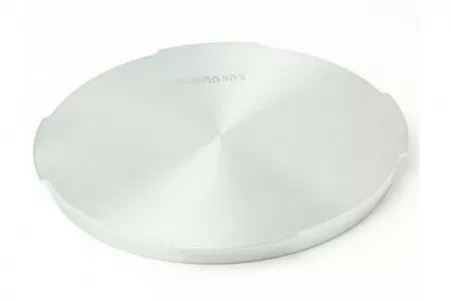

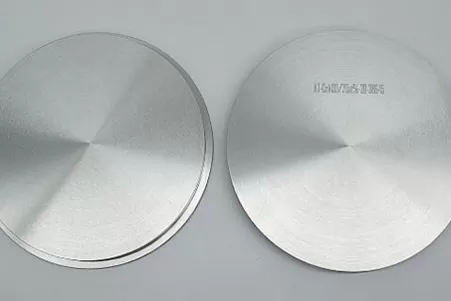

What are CrAl Targets?

CrAl targets are composite materials combining Chromium (Cr) and Aluminum (Al), typically used in a certain ratio such as Cr70Al30 or Cr80Al20 depending on the specific requirement. The addition of aluminum to chromium enhances certain properties, including oxidation resistance and thermal stability.

Key Characteristics of CrAl Targets:

Enhanced Oxidation Resistance: Especially valuable in high-temperature environments.

Improved Toughness: Aluminum adds ductility, reducing brittleness.

Superior Thermal Stability: Ideal for applications where temperature fluctuations are significant.

Versatility in Film Properties: Enables tuning of film hardness, adhesion, and corrosion resistance.

Physical Properties

When comparing Cr and CrAl targets based on physical properties, each offers unique advantages.

Chromium has a higher density and melting point compared to CrAl, making it better suited for applications requiring high-temperature stability. On the other hand, CrAl's lighter density can be advantageous in applications where weight considerations are critical.

Chemical Properties

Chemical resistance is a major deciding factor in material selection, especially for coatings exposed to harsh chemicals or oxidative environments.

Chromium: Offers superb corrosion resistance in most environments but can oxidize under extreme conditions.

Chromium-Aluminum (CrAl): Outperforms pure chromium in oxidation resistance, especially at high temperatures. The aluminum in CrAl forms a protective alumina (Al₂O₃) layer that shields the material from further degradation.

Thus, if your application involves exposure to extreme oxidative environments, CrAl may be the better choice.

Mechanical Properties

Mechanical robustness is crucial in demanding applications like aerospace, automotive, and tooling industries.

Cr Targets: Provide high hardness but can be somewhat brittle.

CrAl Targets: Exhibit better toughness thanks to aluminum, making them less prone to cracking or mechanical failure under stress.

In applications requiring a balance of hardness and ductility, CrAl targets often edge out pure chromium.

Applications of Cr and CrAl Targets

Understanding where and how these materials are applied can provide better insight into which might suit your needs.

Industrial Applications

Chromium Targets:

Used extensively in decorative coatings for watches, automotive trims, and household appliances.

Essential in corrosion-resistant coatings for marine and aerospace components.

Utilized in hard coatings for wear resistance in industrial tools.

Chromium-Aluminum Targets:

Popular in cutting tool coatings like drills and milling equipment due to their heat resistance.

Frequently employed in protective coatings for aerospace components subjected to high thermal stress.

Integral in microelectronics where thin films require both conductivity and oxidation resistance.

Research and Development Uses

Both Cr and CrAl targets are heavily utilized in research environments for developing new materials and coatings. Researchers often explore:

Material property enhancements (e.g., combining Cr and Al with other elements like nitrogen for superhard coatings).

Thin film technology advancements in fields like photovoltaics, semiconductors, and optical coatings.

High-temperature stability studies for next-gen turbine blades and space applications.

Key Differences Between Cr and CrAl Targets

Performance Comparison

Wear Resistance: Both offer excellent wear resistance, but CrAl can outperform Cr in high-temperature environments.

Oxidation Resistance: CrAl is the superior choice here thanks to its alumina formation.

Film Quality: Cr produces highly smooth and shiny films, ideal for decorative applications, while CrAl films are preferred for functional coatings requiring toughness.

Cost Comparison

Cr Targets: Generally cheaper than CrAl targets due to the absence of alloying elements and simpler production.

CrAl Targets: Slightly more expensive but offer longer life and enhanced performance, which can offset the initial higher cost over time.

Durability and Stability

Durability: CrAl films tend to last longer in harsh environments compared to Cr films.

Thermal Stability: CrAl is more thermally stable, making it ideal for high-temperature operations.

Factors to Consider When Choosing

Selecting between Cr and CrAl targets isn't just about their material properties; several other practical factors come into play. Your decision should be holistic, factoring in everything from technical requirements to financial constraints.

Application Requirements

The foremost factor is clearly the application's specific needs. Ask yourself:

Will the coating face extreme temperatures?

If yes, CrAl is likely a better fit due to its superior oxidation resistance.

Is surface appearance important?

For aesthetic purposes like decorative coatings, Cr may be more desirable because of its smooth, shiny finish.

Do I need higher toughness and lower brittleness?

CrAl’s aluminum content provides better toughness, making it ideal where mechanical stress is an issue.

Does the application involve severe corrosion exposure?

Although Cr is excellent, CrAl’s alumina layer provides a secondary line of defense against oxidation and chemical attack.

You should always align material characteristics directly with the operational environment's demands.

Environmental Considerations

Today, environmental responsibility plays a huge role in material selection. Companies are actively seeking eco-friendly and sustainable processes.

Recyclability:

Chromium is easier to recycle in pure form, which can be an advantage in industries focusing on circular economy principles.

Toxicity:

Both Cr and CrAl are relatively safe when used in solid form. However, during deposition or machining, chromium vapors can pose a hazard if inhaled, necessitating better containment and air purification setups.

Energy Consumption:

CrAl targets require slightly lower sputtering energy compared to Cr, thanks to the reduced melting point introduced by aluminum. This could mean lower operational costs and smaller carbon footprints over time.

Budget and Cost Efficiency

Although material performance is critical, so is staying within budget constraints.

Upfront Cost:

Chromium targets are generally more affordable. If your application doesn't demand the extreme oxidation resistance CrAl offers, Cr is a cost-effective option.

Long-Term Savings:

While CrAl is more expensive upfront, its greater longevity and lower maintenance needs could make it cheaper in the long run, especially for heavy-duty or high-temperature uses.

Availability:

Chromium is widely available, but CrAl targets, particularly custom compositions (like Cr75Al25), might involve longer lead times and higher logistics costs.

A careful analysis of both initial investment and lifecycle costs can help you decide wisely.

Sputtering Process Considerations

Besides material properties and cost, the sputtering process itself should influence your choice.

Deposition Rate

One of the critical sputtering process factors is how fast you can deposit the film.

Cr Targets:

Chromium offers a relatively stable and predictable deposition rate, making it ideal for controlled thin-film production.

CrAl Targets:

The presence of aluminum can sometimes lead to slightly uneven deposition if parameters aren’t carefully controlled. However, with optimized conditions, CrAl can achieve comparable or even better rates.

Adhesion to Substrates

Chromium Coatings:

Chromium provides excellent adhesion to many substrates, particularly metals and glass.

Chromium-Aluminum Coatings:

CrAl can sometimes offer better adhesion to complex or non-metallic substrates because of its more complex microstructure.

If you're working with delicate or unusual substrates, CrAl could offer an edge.

Uniformity and Smoothness

Cr:

Known for creating extremely smooth and uniform films, important for applications like microelectronics.

CrAl:

Provides excellent coverage but can have slightly rougher surfaces depending on the sputtering setup and parameters.
